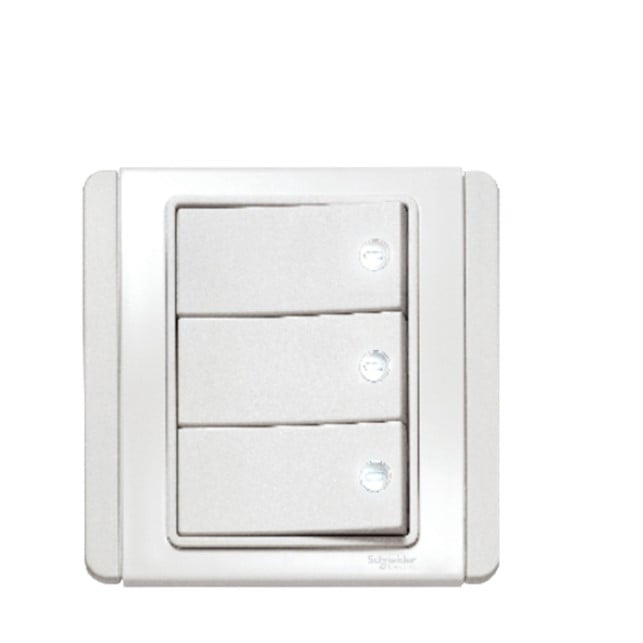

SAKLAR TRIPLE SCHNEIDER NEO E3033H1_EWWW 3G 1W LED WHITE
Rp262.022
Deskripsi
Specifications
| range | Neo |
|---|---|
| product or component type | Control switch |
| device application | Control |
| wiring device mounting | Surface Flush |
| switch function | 1-way |
| load type | Fluorescent lamp Incandescent lamp Inductive Resistive |
| bulb type | LED (white) |
| colour tint | White |
| rated current | 10 A at 250 V AC 50/60 Hz |
|---|---|
| number of gangs | 3 gangs horizontal |
| material | Brass: metal parts Polycarbonate: plastic part Steel: metal parts |
| clamping connection capacity | 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| connections – terminals | Pillar terminals |
| width | 87 mm |
| height | 87 mm |
| embedding depth | 23.5 mm |
| depth | 36 mm |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % |
| environmental characteristic | Indoor use |
| standards | GB 16915.1 IEC 60669-1 EN 60669-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 97.0 g |
| Package 1 Height | 3.6 cm |
| Package 1 width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 3200 |
| Package 2 Weight | 364000.0 g |
| Package 2 Height | 140 cm |
| Package 2 width | 114 cm |
| Package 2 Length | 114 cm |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 8 |
| Package 3 Weight | 790.0 g |
| Package 3 Height | 9.5 cm |
| Package 3 width | 15 cm |
| Package 3 Length | 19 cm |
